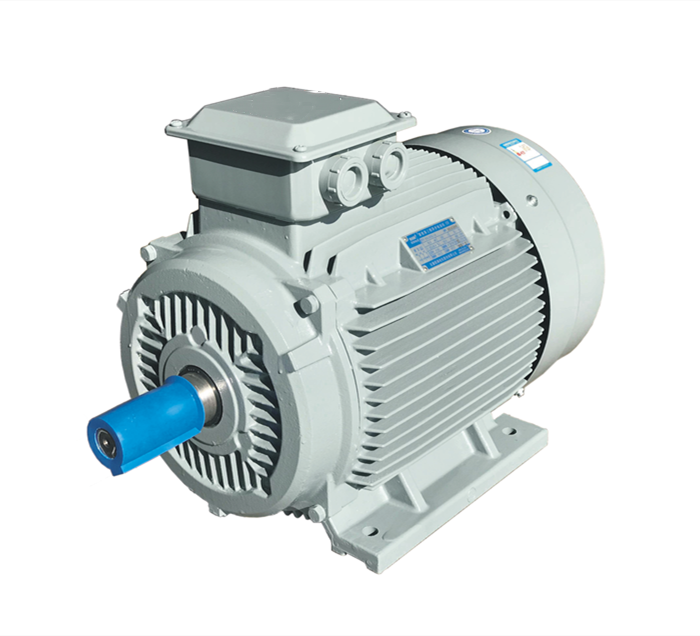

YE3 Series IE3 Super high Efficiency Three phase induction motors
YE3 Documentation
-
Beautiful profile
- High efficiency and energy saving (IE3 of IEC60034-30 and level 2 of GB18613-2012)
- Class F VPI insulation
-
Low noise
-
Slight vibration
- Reliable performance
- Flexibility of application
-
Inverter Duty Rated: 2:1CT & 10:1VT at 380V 50 Hz
-
High lock rotor torque
-
Junction box equipped with glands
-
F2 mounting position, F1, F3 is available too
-
Bidirectional fan
-
Oversized ball bearings on both ends for direct coupling
Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.
Common frame size corresponding to the power:
| Frame Size | 63 | 71 | 80 | 90 | 100 | 112 | 132 | 160 | 180 | 200 | 225 | 250 | 280 | 315 | 355 |
| Power range kW | 0.12~0.25 | 0.18~0.55 | 0.18~1.1 | 0.37~2.2 | 0.75~3 | 1.5~4 | 2.2~7.5 | 4~18.5 | 11~22 | 15~37 | 18.5~45 | 30~55 | 37~110 | 45~220 | 110~375 |
| Poles | 2.4 | 2.4.6 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 |
2.4.6.8. 10 |
2.4.6.8. 10 |
Remark: For the other special rated powers, please contact with us.
|
Frame |
Basic Type |
Derived type |
|||||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
B14 |
B34 |
V18 |
|
|
63~112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
132~160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
|
180~280 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
315~355 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
