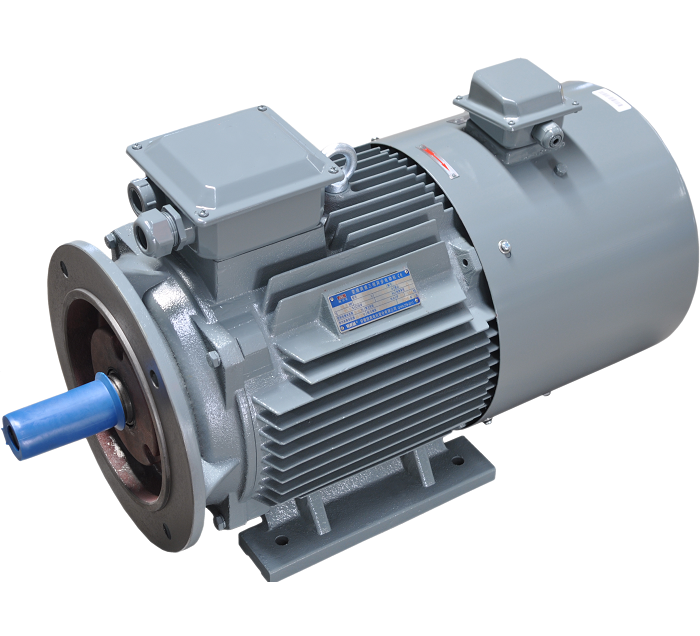

YZP Series Inverter and vector induction motors for Crane and Metallurgical Applications
YZP Series Documentation
Good overload capacity and strong mechanical strength
Stepless speed regulation, wide speed regulation range
Energy-saving
Insulation material that can resistant high frequency impulse voltage
Separated blower for forced cooling air
Circumstance for use: Altitude not exceeds 1000m above sea level. The ambient temperature shall no higher than 40℃ and no lower than -15℃; in metallurgy environment the highest temperature shall not higher than +60℃.
Used in the metallurgy and mine industry for driving type crane and similar equipment, especially suit for the instruments which have significant vibration or need short-term and intermittent operation, frequent start and brake, overload.
Common frame size corresponding to the power:
|
Frame Size |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
355 |
400 |
|
Power range kW |
1.5~4 |
2.2~6.3 |
4~15 |
