Recommended Products
- YFB3 Series High Efficency dust explosion-proof three phase induction motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 315kW
* Voltage: 380V660V,380/660V
* Frequency: 50Hz or 60 Hz
* Duty Cycle: S1
* Insulation class: F
* Degree of protection: IP65 T135℃
* Efficiency levels: IE3
* Ex-code: Ex tD A21
- YBX4 Series Super premium Efficiency IE4 Explosion-proof Induction Motors
-
Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE4
- YBS Series Explosion-proof motors for Drag Conveyer
-
* Rated output: 7.5 to 200Kw
* Efficiency levels: IE1
* Voltage: 380V,660V,380V/660V, 1140V,660V/1140V
- YBX3 Series High Efficiency Explosion-proof Induction Motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE3
Top articles

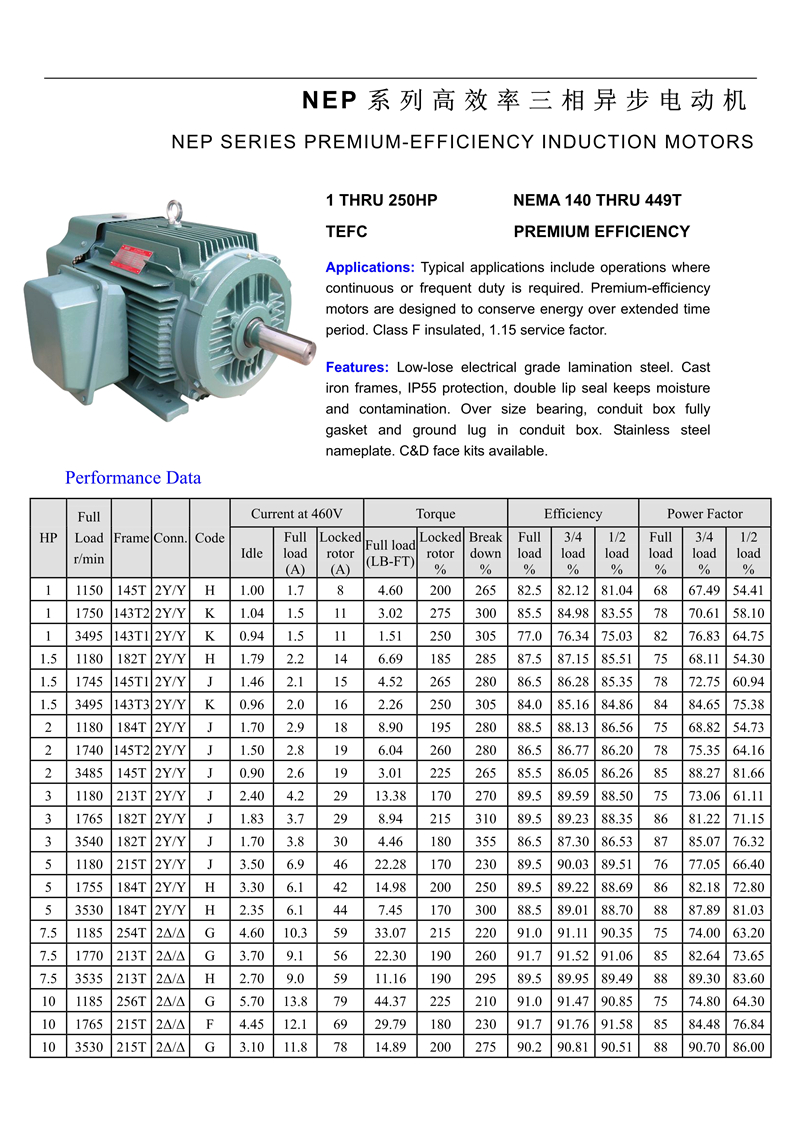

NEP Series Premium Efficient NEMA motor
All-Purpose Premium Efficient 1-250 HP
3PH TEFC 60/50 Hz NEMA AC Foot Mounted and C-Face Motors

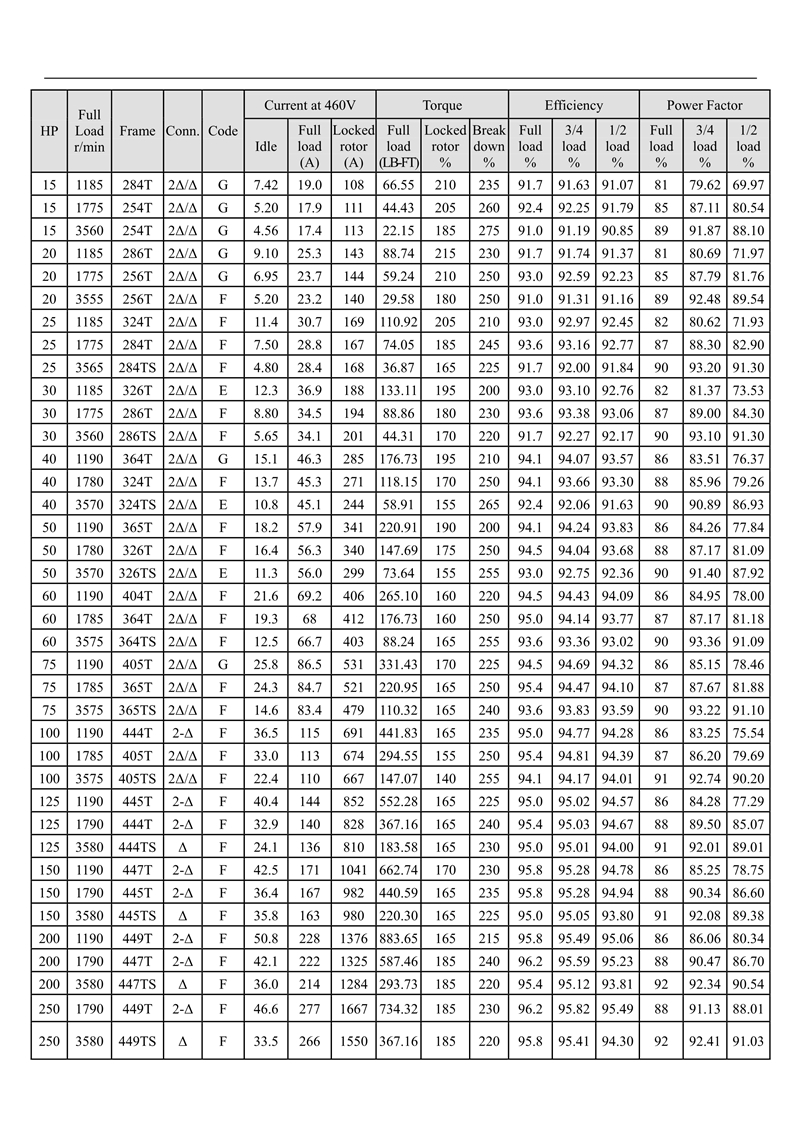

NEP Series Documentation
WANNAN All-Purpose Premium Efficient motors are ideal for a wide variety of industrial applications including fans and blowers, pumps, conveyors, crushers, compressors, mixers and more. IP55 protection, a TEFC rigid cast iron construction, and dual rated 190/380V 50Hz with a 2-year warranty, WANNAN All-Purpose motors provide peace-of-mind performance in typical applications.
1. Inverter Duty Rated: 5:1CT & 10:1VT
2. Service Factor: 1.15
3. Design: “B”
4. Protection Degree: IP55
5. Enclosure: TEFC Rigid Cast Iron Frame
6. VPI applied for best electrical performance
7. Corrosion resistant epoxy coated
8. F1 / F2 Convertible
9. Oversized bearings on both ends (444T and up DE Roller Bearing)
10. 230/460V 60Hz, usable at 208V (444T and up 460V only)
11. Double rated for 190/380V 50Hz
12. Suitable for Y/delta starting and part winding starting
13. Double drilled feet
14. Class “F” insulation with rise below Class “B”
15. CSA-US certified, DOE approved, CE marked
Optional features:
a. A variety of electric motor modifications are available from our modification center including non-standard voltages.
b. Flanges, bearings.
c. Blowers.
d. Higher service factor.
e. Drip covers.
f. Space heaters and more.
Ideal for a wide variety of industrial applications that require a premium efficient foot mounted electric motor, such as fans & blowers, pumps, conveyors, crushers, compressors, mixers and more.
