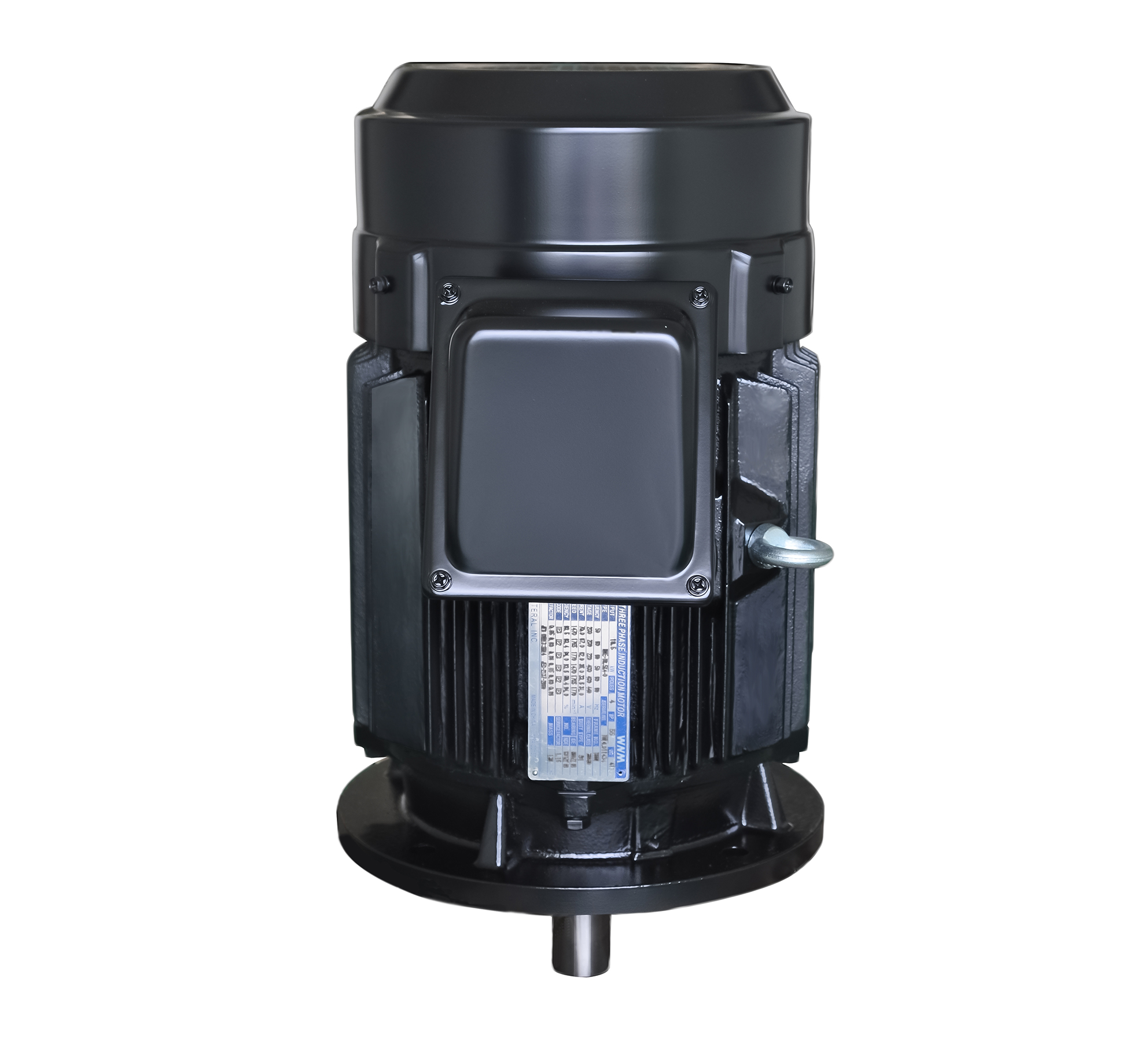

JM/JP Close Coupled Pump motor
JM/JP Close Coupled Pump electric motor – 1-60 HP
JM and JP close coupled pump TEFC electric motors are designed for continuous duty fluid circulation and transfer applications ranging from treatment plants to swimming pools. Unique to the marketplace, WANNAN close coupled pump motors feature a high service factor (up to 1.25 which more effectively allows pumps to start under excessive load or poor supply conditions. WANNAN JM and JP electric motors are also equipped with oversized double-shielded bearings on both ends, vacuum pressure impregnation, IP55 protection.
Features
1. Inverter Duty Rated: 20:1VT
2. Service Factor: up to 1.2
3. Design: "B" or "A"
4. Protection Degree: IP55
5. Enclosure: TEFC
6. VPI process applied for best electrical performance
7. High lock rotor torque
8. Dual rated for 190/380V 50 Hz
9. Oversized bearings on both ends
10. Mechanically locked on shaft
11. Class “F” insulation with Class “B” rise
12. Rigid cast iron frame
13. Steel fan guard
14. F1 mounting position
15. Drain plugs
16. Designed for horizontal and vertical application
17. CSA-US certified, DOE approved and CE marked
Applications
Designed for continuous duty on close coupled pumps with NEMA JM mounting dimensions which are ideal for fluid circulation and transfer applications ranging from treatment plants to swimming pools.
