Recommended Products
- YFB3 Series High Efficency dust explosion-proof three phase induction motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 315kW
* Voltage: 380V660V,380/660V
* Frequency: 50Hz or 60 Hz
* Duty Cycle: S1
* Insulation class: F
* Degree of protection: IP65 T135℃
* Efficiency levels: IE3
* Ex-code: Ex tD A21
- YBX4 Series Super premium Efficiency IE4 Explosion-proof Induction Motors
-
Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE4
- YBS Series Explosion-proof motors for Drag Conveyer
-
* Rated output: 7.5 to 200Kw
* Efficiency levels: IE1
* Voltage: 380V,660V,380V/660V, 1140V,660V/1140V
- YBX3 Series High Efficiency Explosion-proof Induction Motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE3
Top articles

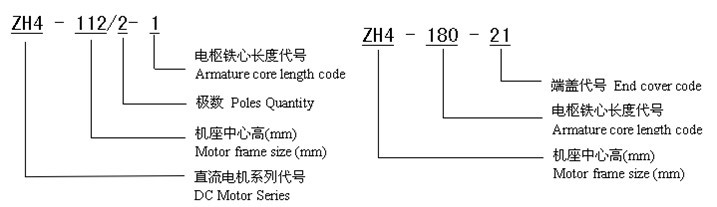

ZH4 Series DC motor
ZH4 Series DC Motors
Steady and good speed regulation system which has wide speed range
Reduce speed by lowering the voltage with constant torque or raise speed by reducing exciting field current with constant power
Large output power
Great overload capacity
Protection grade IP44 or above
Cooling method IC411 or IC416
Step less speed regulation
ZH4 series motor is mainly used in dusty environment or on machinery for driving, as well as for metal cutting machine.
