Winding Connection

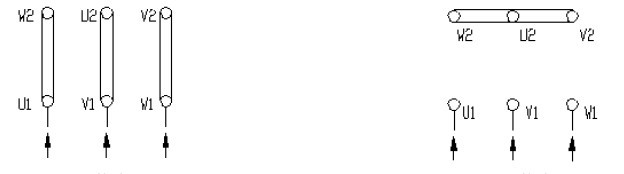

1. Common winding connection are △ and Star (Y).

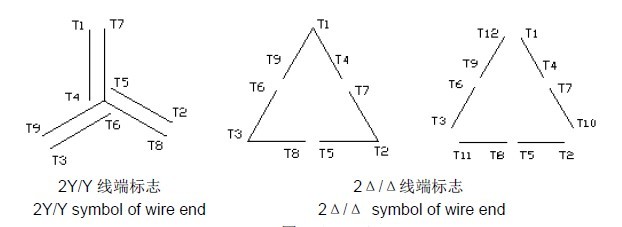

2. The winding commection of three phase double voltage single speed motor: 2△/△ and 2Y/Y
Outgoing terminal mark
| Voltage | Connection | L1 | L2 | L3 | Connected |
| 230V | 2Y | T1,T7 | T2,T8 | T3,T9 | (T4,T5,T6) |
| 460V | Y | T1 | T2 | T3 | (T4,T7) (T5,T8) (T6,T9) |
| 230V | 2△ | T1,T6,T7,(T12) | T2,T4,T8,(T10) | T3,T5,T9,(T11) | -- |
| 460V | △ | T1 | T2 | T3 | (T4,T7) (T5,T8) (T6,T9) |

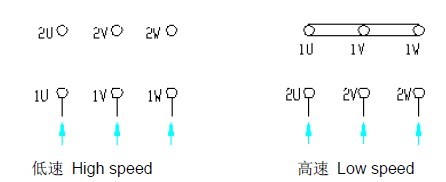

3. The winding commection of three-phase multi-speed motor
The corresponding relationship of incoming terminal
|
|
Two speed | Three speed |
| Low speed | 1U,1V,1W | 1U,1V,1W |
| Medium speed | - | 2U,2V,2W |
| High speed | 2U,2V,2W | 3U,3V,3W |

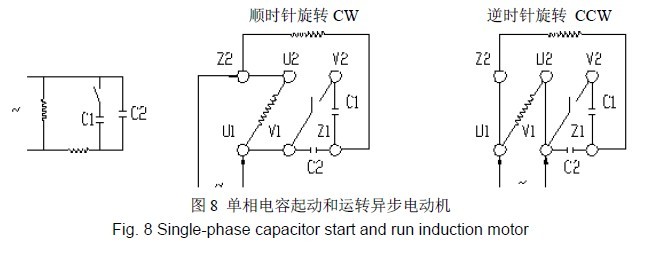

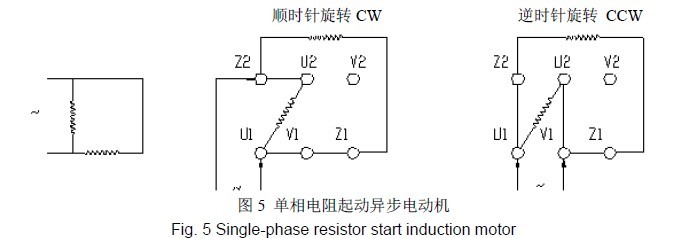

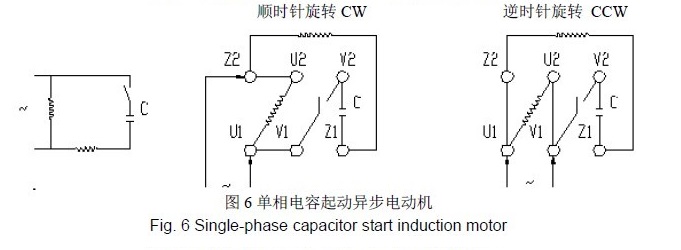

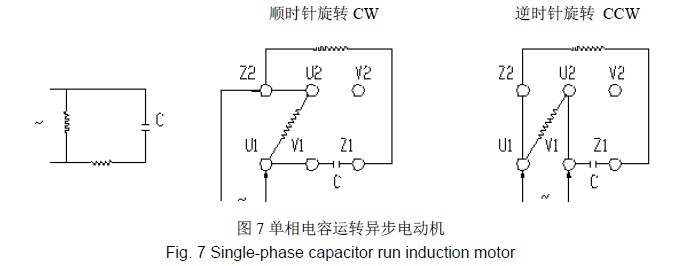

4. The winding commection of single phase motor
