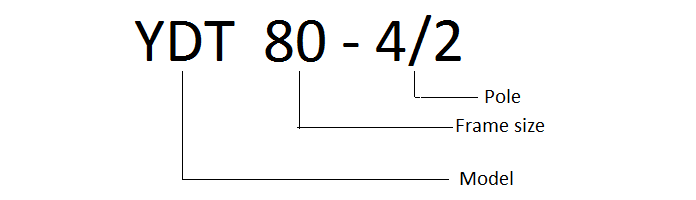

YDT Series Pumps and Fans Pole-changing Motors
YDT Series Documentation
-
Step changes of rotational speed
-

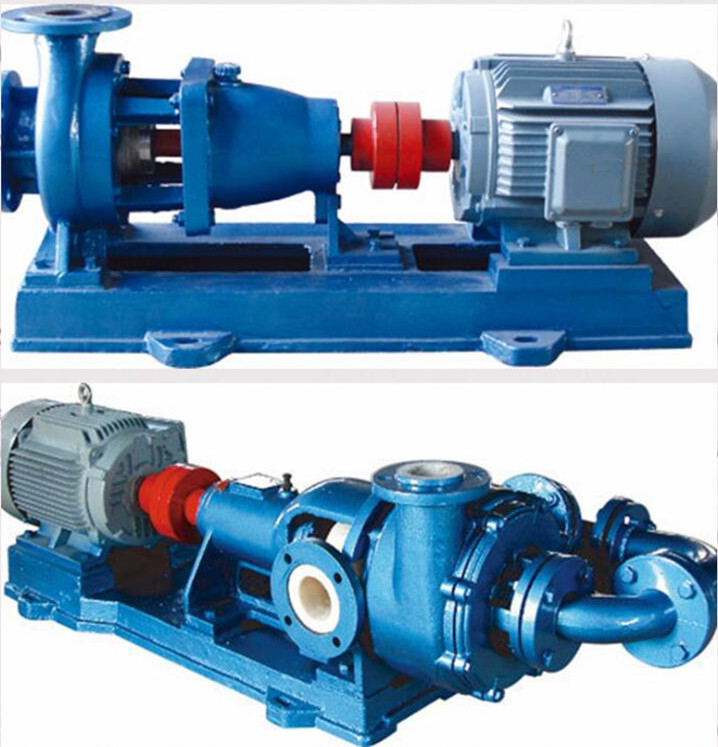

Special motor for blower and pump
-
Motor power match driven equipment
-
Improved efficiency
- Pole-changing mode: two-speed, three-speed
Special motor for such instrument as blower and pump by which speed regulation and changing output power are needed to match load .characteristics
Common frame size corresponding to the power:
|
Frame Size |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
|
Power range kW |
0.17~0.75 |
0.3~1.8 |
0.55~3 |
0.6~4 |
0.8~8 |
1.5~14 |
2.6~22 |
4.5~30 |
5.5~45 |
10~52 |
12~82 |
19~160 |
|
Poles |
4/2 |
4/2.6/4.8/4
.8/6 |
4/2.6/4.8/4.
8/6 |
4/2.6/4.8/4.
8/6.8/6/4 |
4/2.6/4.8/4.
8/6.8/6/4 |
4/2.6/4.8/4.
8/6.8/6/4 |
6/4.8/4.
8/6.8/6/4 |
6/4.8/4.
8/6.8/6/4 |
6/4.8/4.
8/6.8/6/4 |
6/4.8/4.
8/6.8/6/4 |
6/4.8/4.
8/6.8/6/4 |
6/4.8/4.
8/6.8/6/4 |
Remark: For the other special rated powers, please contact with us.
|
frame |
Basic Type |
Derived Type |
||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V35 |
|
|
80~160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
180~225 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
|
250~315 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
