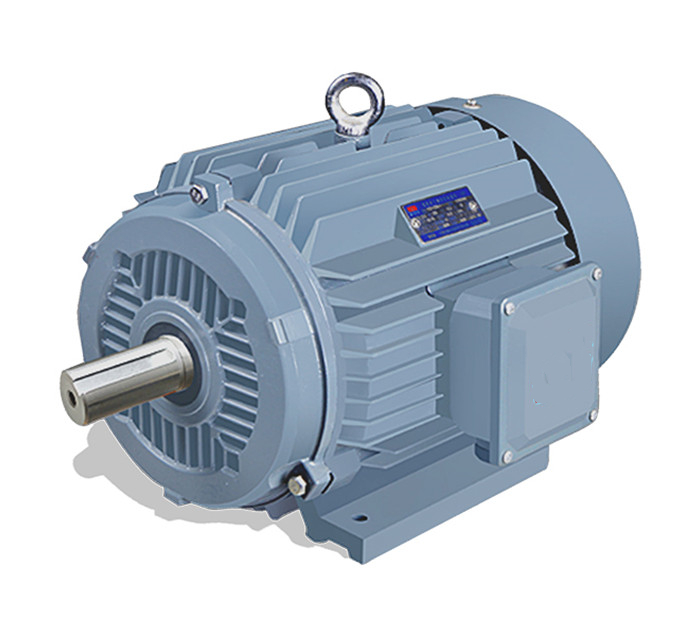

YH2 Series High slip three phase induction motors
YH2 Series Documentation
High starting torque
High slip
Low starting current and soft mechanical properties
Low vibration
Various kinds of machine tools with large flywheel torque, unbalanced impact load and repetitive anticlockwise running, such as metalworking machine, hammering machine, shearer machine, punch press, hammering press etc.
Common frame size corresponding to the power:
|
Frame Size |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
355 |
|
Power range kW |
0.55~1.1 |
0.75~2.2 |
0.75~3 |
1.5~4 |
2.2~7.5 |
4~18.5 |
11~22 |
15~30 |
18.5~45 |
30~55 |
37~90 |
75~200 |
160~315 |
|
Poles |
2.4 |
2.4.6 |
2.4.6 |
2.4.6 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6 |
2.4.6 |
Remark: For the other special rated powers, please contact with us.
|
Frame |
Basic Type |
Derived Type |
||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
|
|
80~160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
180~225 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
|
250~355 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
