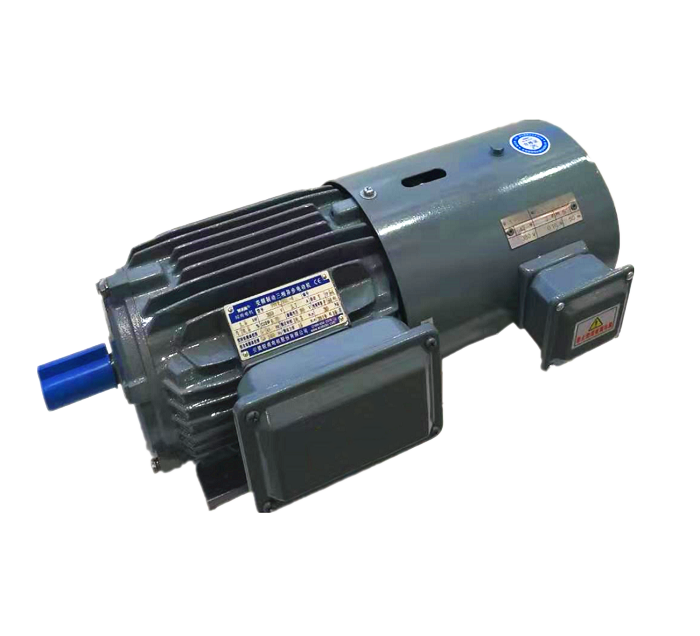

YXVFEJ series Three phase Variable frequency and brake motor
- Electromagnetic brake
- Prompt braking
- Energy saving IE2 & IE3
- Simple structure
- Exact orientation
- Stepless speed regulation in a wide range
- Good performance
- High-grade insulation material and special technology can withstand high frequency pulse impact
- Separated fan for forced-ventilation.
Outstanding durability and performance ideal for hoists, cranes, conveyors, machine tools, speed reducers and other industrial applications where speed-regulation and a quick stop and positive holding torque are necessary.
|
Frame Size |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
|
Power range kW |
0.18~0.75 |
0.37~2.2 |
1.1~3 |
4~7.5 |
2.2~7.5 |
4~18.5 |
11~22 |
15~37 |
18.5~45 |
30~55 |
37~90 |
45~200 |
|
Poles |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
8/6/4/2 |
10/8/6/4/2 |

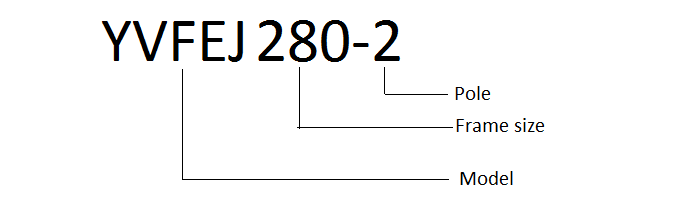

.jpg)
|
Frame |
basic type |
derived type |
||||||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
B14 |
B34 |
V18 |
||
|
80～112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
132～160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
|
|
180～280 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
|
315 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
