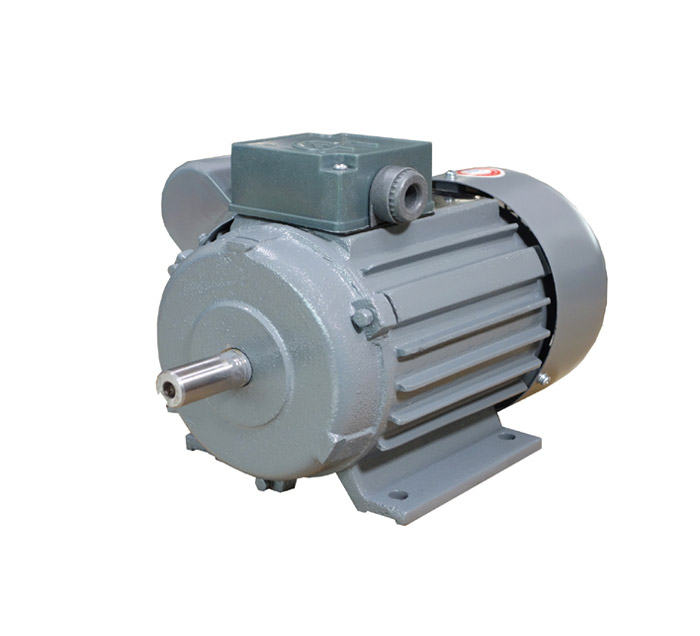

YC Series Capacitor Start & Run Induction Motors
YC Series Documentation
High starting torque
Low energy consumption
Cast iron or cast Aluminum frames
Applied in air compressors, refrigerator, remedy apparatus, machine tools and etc.
Common frame size corresponding to the power:
|
Frame Size |
71 |
80 |
90 |
100 |
112 |
132 |
|
Power range kW |
0.12~0.25 |
0.25~0.55 |
0.25~1.1 |
0.55~2.2 |
1.1~3 |
1.5~3.7 |
|
Poles |
2.4 |
2.4 |
2.4.6 |
2.4.6 |
2.4.6 |
2.4.6 |
Remark: For the other special rated powers, please contact with us.
