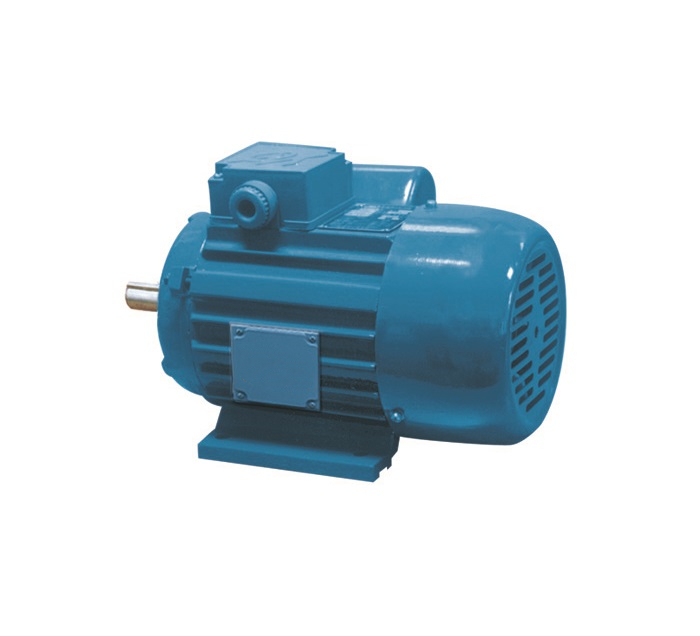

YY Series Single phase Induction motors
YY Series Documentation
Outstanding performance
Reliable running
Widely used in medical apparatus, food pressing and small machine tools.
Common frame size corresponding to the power:
Frame Size |
50 |
56 |
63 |
71 |
80 |
90 |
Power range kW |
0.04~0.06 |
0.06~0.12 |
0.12~0.25 |
0.25~0.55 |
0.55~1.1 |
1.1~2.2 |
Poles |
2.4 |
2.4 |
2.4 |
2.4 |
2.4 |
2.4 |
Remark: For the other special rated powers, please contact with us.
