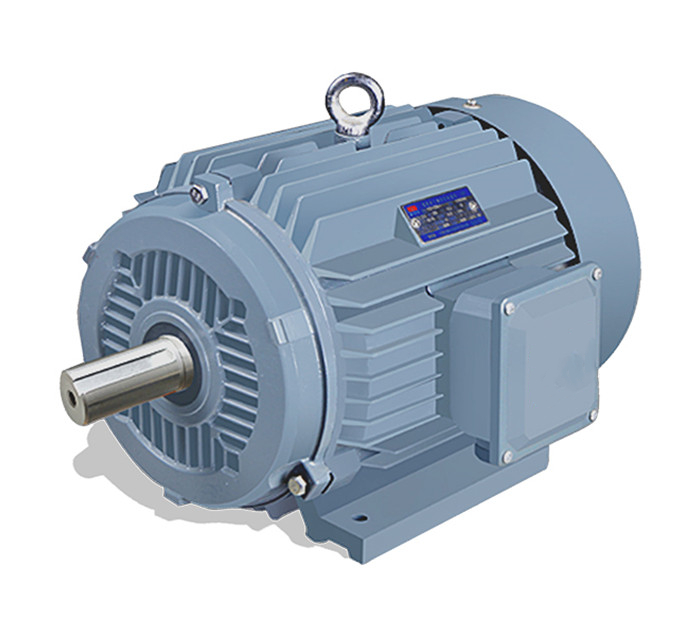

YD2 Series Pole-changing Multi-speed Three phase induction motors
YD2 Series Documentation
- Simplify speed-changing system by changing the connection to match different output and speed.
- Speed-changing mode: two-speed, three-speed, four-speed
-
Low noise
-
Little vibration
- Reliable performance
Widely applied in the transmission machinery of machinery and mining, metallurgy, textile, printing and dyeing, chemical industry by which step change of rotational speed is needed to meet the requirements of load character.
Common frame size corresponding to the power:
|
Frame Size |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
|
Power range kW |
0.45~0.75 |
0.35~1.8 |
0.75~3 |
0.65~4 |
1~8 |
2.2~14 |
3.3~22 |
4.5~30 |
7~45 |
27~52 |
32~82 |
|
Poles |
4/2 |
4/2.6/4.8/4
.8/6 |
4/2.6/4.8/4.
8/6. |
4/2.6/4.8/4.
8/6. .8/4/2.8/6/4
|
4/2.6/4.8/4.
8/6.
|
4/2.6/4.8/4.
8/6.
|
4/2.6/4.8/4.
8/6. 12/8/6/4 |
4/2.6/4.8/4.
8/6. 12/8/6/4 |
4/2.6/4.8/4.
8/6. 12/8/6/4 |
4/2.6/4.8/4.
8/6. 12/8/6/4 |
4/2.6/4.8/4.
8/6. 12/8/6/4 |
Remark: For the other special rated powers, please contact with us.
|
frame |
Basic Type |
Derived Type |
||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V35 |
|
|
80~160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
180~225 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
|
250~280 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
