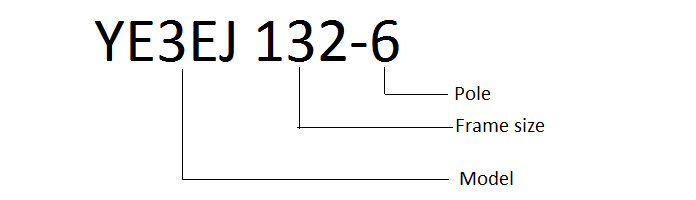

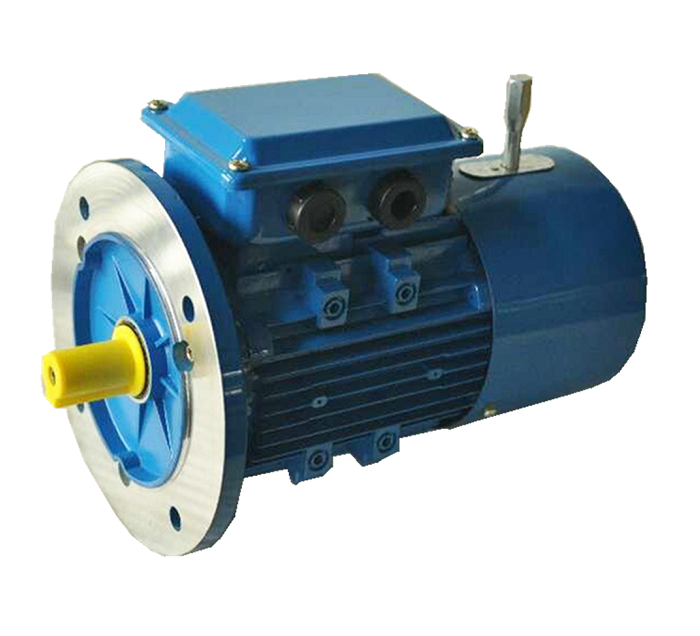

YE3EJ Series Super High efficiency AC Squirrel cage brake motors
YE3EJ Series Documentation
- Electromagnetic brake
- Fast braking
- High efficiency and Energy saving IE3
- Simple structure
- Exact orientation
Widely used for driving machine tools, printing machinery, forging press, transport machinery, packing machinery, food machinery, construction machinery, and woodworking machinery where quick stop, accurate braking, reciprocated operation are demanded.
Common frame size corresponding to the power:
|
Frame Size |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
|
Power range kW |
0.18~1.1 |
0.37~2.2 |
0.75~3 |
1.5~4 |
2.2~7.5 |
4~18.5 |
11~22 |
15~37 |
18.5~45 |
30~55 |
37~90 |
45~220 |
|
Poles |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8.10 |
Remark: For the other special rated powers, please contact with us.
|
Frame |
basic type |
derived type |
||||||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
B14 |
B34 |
V18 |
||
|
80～112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
132～160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
|
|
180～280 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
|
315 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
