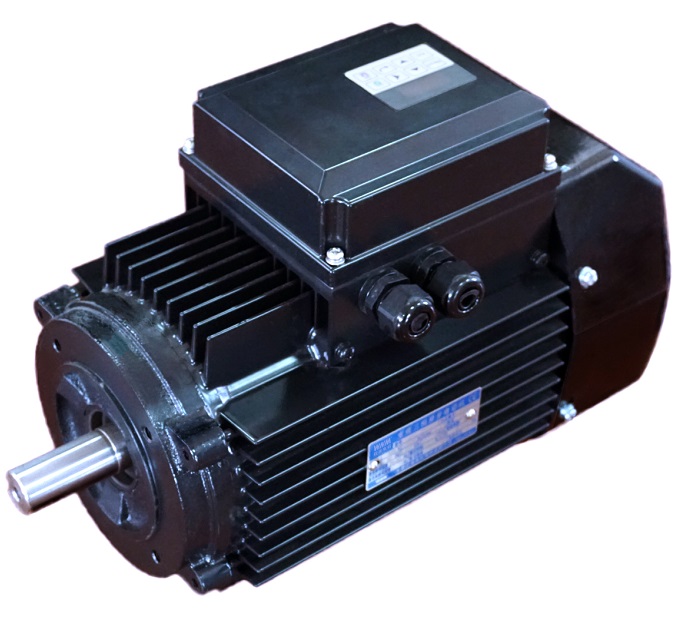

YZNP2 Series Smart Control Induction Motor
YZNP2 Series Documentation
- Motor and inverter all-in-one motors
- Small size
- Light weight
- Wide range of frequency conversion
- Stable performance
- Low cost
- High efficiency IE2
Widely used in fans, pumps, compressors, CNC machine tools and other industries. It’s in line with the current trend of intelligent development of new products.
Common frame size corresponding to the power:
Frame Size |
80 |
90 |
100 |
112 |
132 |
Power range kW |
0.55~1.1 |
1.1~2.2 |
2.2~3 |
4 |
5.5~7.5 |
Poles |
2.4 |
2.4 |
2.4 |
2.4 |
2.4 |
Remark: For the other special rated powers, please contact with us.
Frame |
basic type |
derived type |
||||||||||||||
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
B14 |
B34 |
V18 |
||
80~112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
132 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
