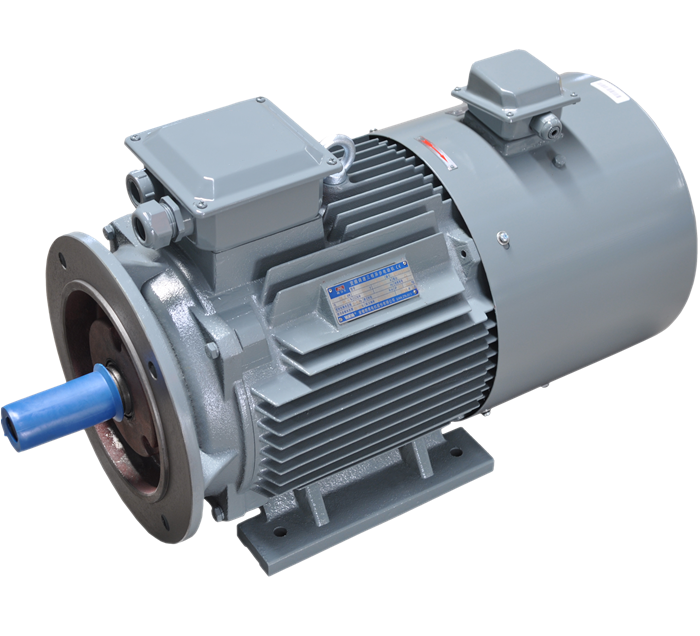

YE3VF Series Super High efficiency Frequency Variable Speed Regulation motors
YE3VF Series Documentation
- Stepless speed regulation in a wide range
- Good performance
- Energy saving IE3
- High-grade insulation material and special technology can withstand high frequency pulse impact
- Separated fan for forced-ventilation
Widely applied in metallurgy, chemistry, textile, pharmacy, printing, packing and food industry on the machine or equipment by which speed-regulation is needed, like fan, pump, numerical control machine, machine center, etc.
Common frame size corresponding to the power:
Frame Size |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
355 |
Power range kW |
0.18~1.1 |
0.37~2.2 |
0.75~3 |
1.5~4 |
2.2~7.5 |
4~18.5 |
11~22 |
15~37 |
18.5~45 |
30~55 |
37~90 |
45~220 |
110~375 |
Poles |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8.
10 |
2.4.6.8.
10 |
Remark: For the other special rated powers, please contact with us.
Frame |
basic type |
derived type |
||||||||||||||
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
B14 |
B34 |
V18 |
||
80~112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
132~160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
|
180~280 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
315~355 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
