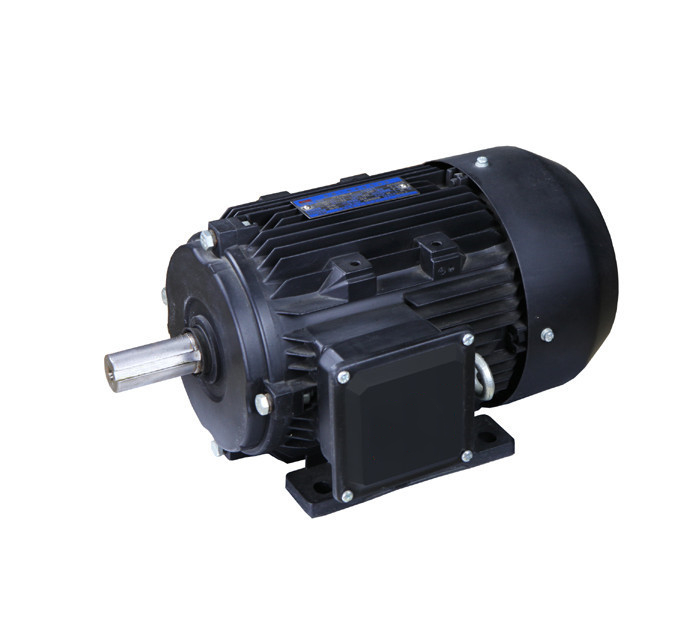

YE3L Series IE3 Super High Efficiency Aluminum Frame Three Phase Induction Motors
YE3L Series Documentation
- Aluminum frame
-
Beautiful profile
-
High efficiency and energy saving (IE3 of IEC60034-30 and level 2 of GB18613-2012)
-
Low noise
-
Little vibration
-
Reliable performance
-
Inverter Duty Rated: 2:1CT & 10:1VT at 380V 50 Hz
-
High lock rotor torque
-
Junction box equipped with glands
-
F2 mounting position, F1, F3 is available too
-
Bidirectional fan
-
Over sized ball bearings on both ends for direct coupling
General purpose including cutting machines, pumps, fans, conveyors, machines tools of farm duty and food process etc. Particularly suited to the OEM and Re-sale (Distribution) markets, this series provides an optimal balance between standard product features, reduced weight, rapid availability and competitive pricing.
Common frame size corresponding to the power:
|
Frame Size |
63 |
71 |
80 |
90 |
100 |
112 |
132 |
160 |
|
Power range kW |
0.12~0.25 |
0.18~0.55 |
0.18~1.1 |
0.37~2.2 |
0.75~3 |
1.5~4 |
2.2~7.5 |
4~18.5 |
|
Poles |
2.4 |
2.4.6 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
Remark: For the other special rated powers, please contact with us.
|
Frame |
Basic Type |
Derived type |
|||||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
B14 |
B34 |
V18 |
|
|
63~112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
132~160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
