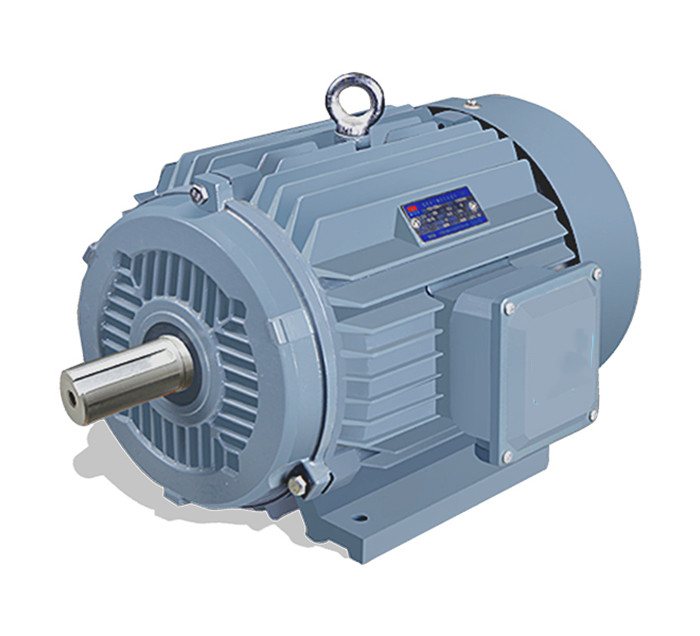

YE4 Series Ultra High Efficiency IE4 Three phase induction motors
YE4 Series Documentation
- Beautiful profile
- Highest efficiency and energy saving (IE4 of IEC60034-30 and level 1 of GB18613-2012)
- Class F VPI insulation
- Low noise
- Little vibration
- Reliable performance
- Flexibility of application
- Inverter Duty Rated: 2:1CT & 10:1VT at 380V 50 Hz
- High lock rotor torque
- Junction box equipped with glands
- F2 mounting position, F1, F3 is available too
- Bidirectional fan
- Oversized ball bearings on both ends for direct coupling
- Larger WANNAN Metric Motors, up to 2000kW, are also available upon request.
Can be applied in the machines where continuous duty is required, like pumps, fans and etc.
Common frame size corresponding to the power:
| Frame Size | 80 | 90 | 100 | 112 | 132 | 160 | 180 | 200 | 225 | 250 | 280 | 315 | 355 |
| Power range kW | 0.55~1.1 | 0.75~2.2 | 1.5~4 | 2.2~4 | 3~7.5 | 7.5~18.5 | 15~22 | 18.5~37 | 30~45 | 37~55 | 45~90 | 75~250 | 160~375 |
| Poles | 2.4 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 | 2.4.6 |
Remark: For the other special rated powers, please contact with us.
|
Frame |
Basic Type |
Derived type |
|||||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
B14 |
B34 |
V18 |
|
|
63~112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
132~160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
|
180~280 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
315~355 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
