Recommended Products
- YFB3 Series High Efficency dust explosion-proof three phase induction motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 315kW
* Voltage: 380V660V,380/660V
* Frequency: 50Hz or 60 Hz
* Duty Cycle: S1
* Insulation class: F
* Degree of protection: IP65 T135℃
* Efficiency levels: IE3
* Ex-code: Ex tD A21
- YBX4 Series Super premium Efficiency IE4 Explosion-proof Induction Motors
-
Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE4
- YBS Series Explosion-proof motors for Drag Conveyer
-
* Rated output: 7.5 to 200Kw
* Efficiency levels: IE1
* Voltage: 380V,660V,380V/660V, 1140V,660V/1140V
- YBX3 Series High Efficiency Explosion-proof Induction Motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE3
Top articles

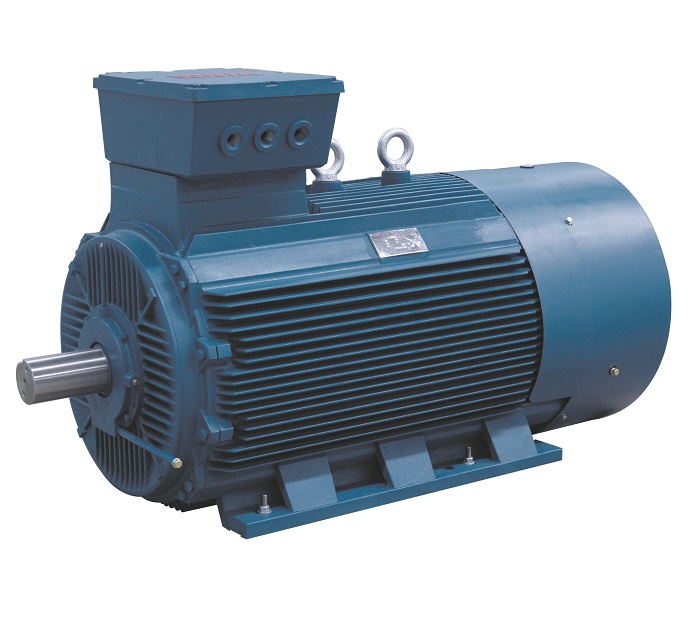

YLV Series Low voltage Large power Medium Size Three phase induction motors
YLV Series Documentation
Large power and low voltage
Beautiful design
Low noise
Little vibration
Protection Degree: IP55
Drilled and tapped end shaft
Drain plugs
Bidirectional fan
D-Flange available for most sizes
All motors provided with CE mark
Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.
Common frame size corresponding to the power:
| Frame Size | 400 | 450 |
| Power range kW | 185~450 | 250~800 |
| Poles | 2.4.6.8.10.12 | 4.6.8.10.12 |
Remark: For the other special rated powers, please contact with us.
