YZR/YZ Series Induction Motors for Cranes and Metallurgical Applications
YZR/YZ Series Documentation
Good overload capacity and
Strong mechanical strength
YZR series motor is winding rotor
YZ series is squirrel-cage rotor
Used in the metallurgy and mine industry for driving type crane and similar equipment, especially suit for the instruments which need short-term and intermittent operation, frequent start and brake, overload, and have significant vibration and impact.

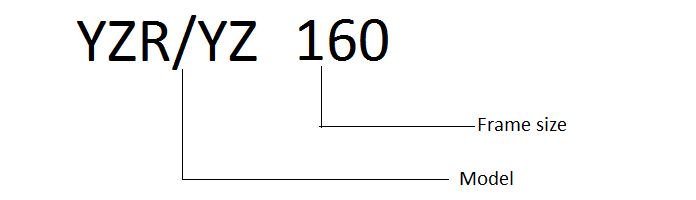

Common frame size corresponding to the power:
Frame Size | 112 | 132 | 160 | 180 | 200 | 225 | 250 |
Power range kW | 1.8 | 2.5~4 | 6.3~13 | 13 | 19 | 26 | 35 |
Poles | 6 | 6 | 6.8 | 8 | 8 | 8 | 8 |
Remark: For the other special rated powers, please contact with us.
Mounting Type |
Symbol |
Range (Frame Size) |
Note |
|
YZ series |
YZR series |
|||
|
IM1001 |
112~160 |
112~160 |
Single Cylindrical Shaft End |
IM1003 |
180~250 |
180~400 |
Single Conical Shaft End |
|
|
IM1002 |
112~160 |
112~160 |
Double Cylindrical Shaft End |
IM1004 |
180~250 |
180~400 |
Double Conical Shaft End |
|
|
IM3001 |
112~160 |
112~160 |
Single Cylindrical Shaft End |
IM3003 |
180 |
180 |
Single Conical Shaft End |
|
|
IM3011 |
112~160 |
112~160 |
Single Cylindrical Shaft End |
IM3013 |
180~250 |
180~315 |
Single Conical Shaft End |
