Recommended Products
- YFB3 Series High Efficency dust explosion-proof three phase induction motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 315kW
* Voltage: 380V660V,380/660V
* Frequency: 50Hz or 60 Hz
* Duty Cycle: S1
* Insulation class: F
* Degree of protection: IP65 T135℃
* Efficiency levels: IE3
* Ex-code: Ex tD A21
- YBX4 Series Super premium Efficiency IE4 Explosion-proof Induction Motors
-
Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE4
- YBS Series Explosion-proof motors for Drag Conveyer
-
* Rated output: 7.5 to 200Kw
* Efficiency levels: IE1
* Voltage: 380V,660V,380V/660V, 1140V,660V/1140V
- YBX3 Series High Efficiency Explosion-proof Induction Motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE3
Top articles

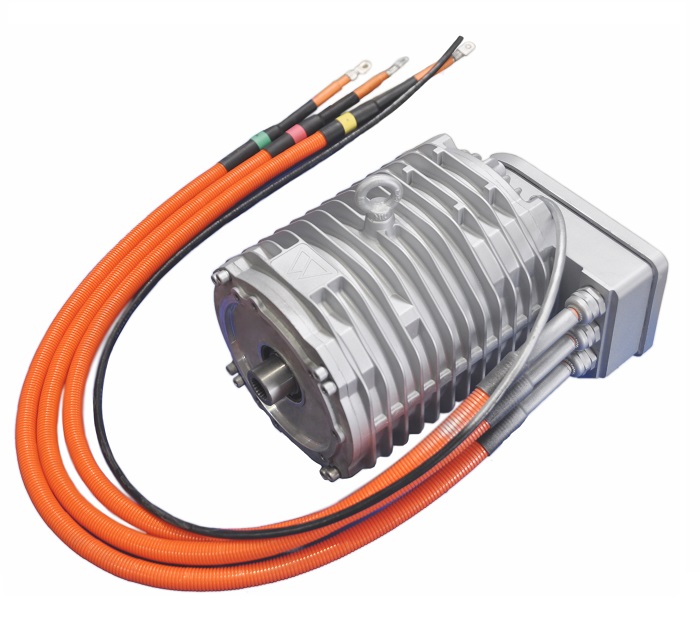

YQC series new energy car driven motor
YQC Series Documentation
Small volume
Low weight
High efficiency
High torque
Through ISO/TS16949 quality management system certificate
YQC series motors are the driving motors specially developed for new energy car, logistic vehicle, minibus and etc.
The dimension of YQC series new energy drive motor could be customized according to customers’ corollary equipments.
