Recommended Products
- YFB3 Series High Efficency dust explosion-proof three phase induction motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 315kW
* Voltage: 380V660V,380/660V
* Frequency: 50Hz or 60 Hz
* Duty Cycle: S1
* Insulation class: F
* Degree of protection: IP65 T135℃
* Efficiency levels: IE3
* Ex-code: Ex tD A21
- YBX4 Series Super premium Efficiency IE4 Explosion-proof Induction Motors
-
Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE4
- YBS Series Explosion-proof motors for Drag Conveyer
-
* Rated output: 7.5 to 200Kw
* Efficiency levels: IE1
* Voltage: 380V,660V,380V/660V, 1140V,660V/1140V
- YBX3 Series High Efficiency Explosion-proof Induction Motors
-
* Frame sizes: 80 to 355
* Rated output: 0.18 to 375kW
* Voltage: 380V,660V,380/660V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 80-355)
660V/1140V 50Hz & 400V,415V,440V,460V,480V,690V 60Hz (for Exd-symbol Exd Ⅱ and frame size 112-355)
* Degree of protection: IP55
* Efficiency levels: IE3
Top articles

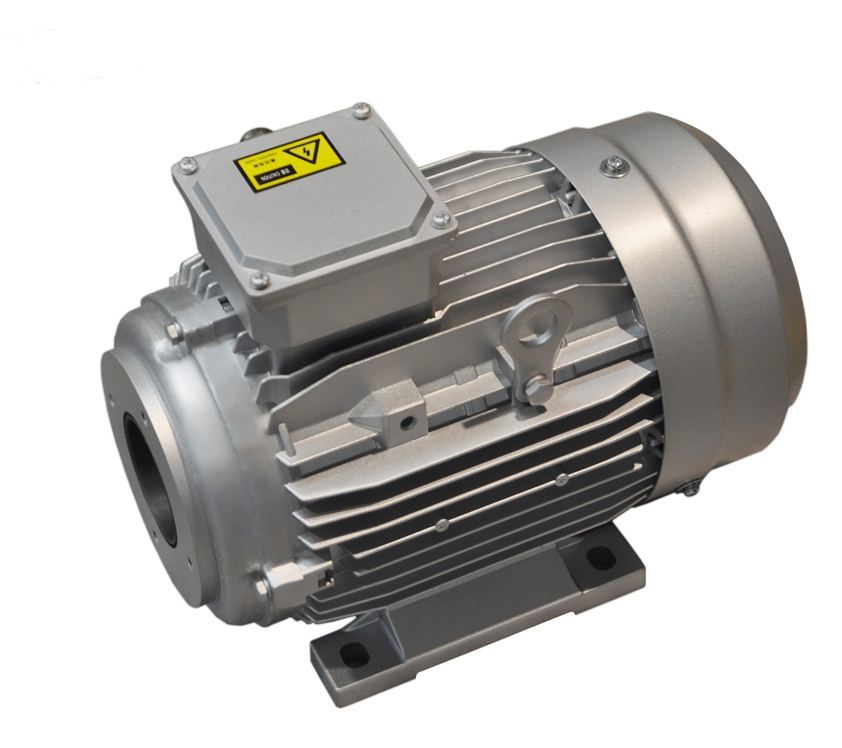

YYVF2 series new energy car power-assisted steering motor
YYVF2 series new energy car power-assisted steering motor is the new type motor that aimed at new energy car power-assisted steering system——“electronic-hydraulic power steering system”(EHPS system)
Equipped with power-assisted steering pump, it is used in new energy car fluid-link steering system.
Variable frequency range 5-50Hz is variable torque, 50-100Hz is constant power.
High torque, peak torque reaches 2 times, duration of peak value is 30 seconds.
Protection class is IP56/IP67, aluminum casting housing is splash proof, comply with international standards, safe operation is guaranteed.
Adopt H class insulation, high heat resistance, strong impact resistance, long insulation life.
Through ISO/TS16949 quality management system certificate, motors are high efficiency, small vibration, low noise, stable performance and so on.

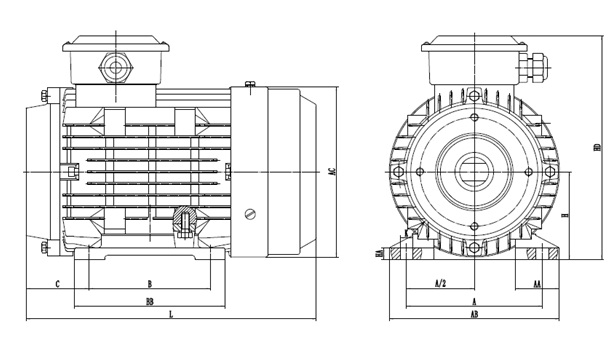

The dimension of YYVF2 series new energy car booster pump car could be customized for customers’ corollary equipments.
