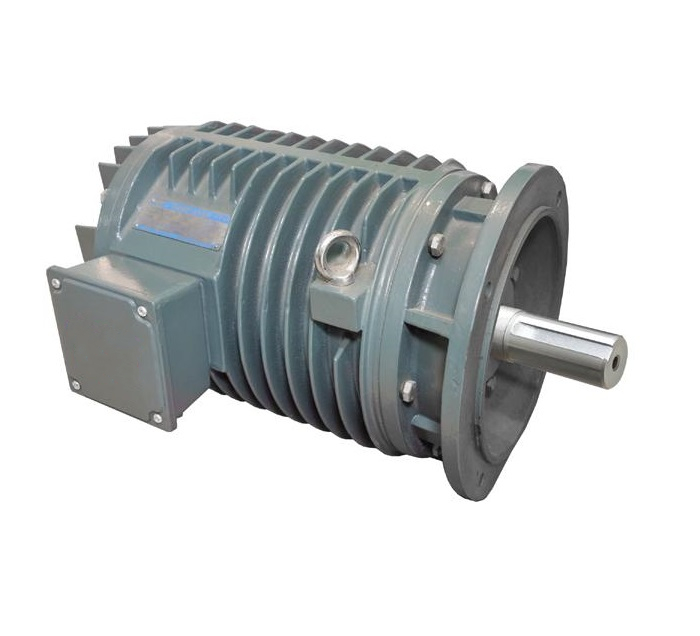

YG Series Induction Motors for Roller Table
YG Series Documentation
Small size and lightweight
Easy to maintain
Reliable operation
Suitable for driving the devices that feature on frequent start, frequent brake, corotation and reverse, plug brake, impact load, or in such harsh environment with high temperature or much dust for continuous on duty or short time on duty
Idea for driving the work roller table and conveyance equipment in steel mill. YGa is suitable for driving the mill table and YGb is suitable for driving the live-roll table in metallurgy industry.
Common frame size corresponding to the power:
| Frame Size | 112 | 132 | 160 | 180 | 200 | 225 |
| Power range kW | 0.3~1.8 | 0.56~2.4 | 0.48~5.3 | 2.2~6.7 | 2~9.5 | 3.6~15 |
| Poles | 4.6.8.10.12 | 6.8.10.12 | 8.10.12.16 | 8.10.12.16 | 10.12.16.20 | 10.12.16.20 |
Remark: For the other special rated powers, please contact with us.
B3 Horizontal Foot Mounted Only
B5 Footless and B5 Flange Mounted
B35 Foot and B5 Flange Mounted
